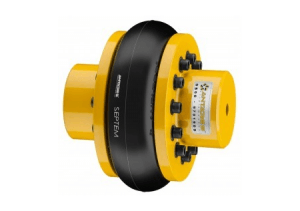

Acoplamento Flexível Alto Torque AT Septem



Acoplamento que reúne as características da

flexibilidade com altíssimo torque.

Características



Exemplos de aplicações:

Saída de redutores
Transportadores
Bombas de processo
Digestores
Flotadores
Bombas de lodo

ModeloTorque NmRotação rpmMassa com Cubo Septem kgMassa Cubo Septem Integral kgFuro Mínimo D4 (mm)Furo Máximo D3 (mm)*Tolerância de Alinhamento mm: AxialTolerância de Alinhamento mm: RadialTorque de Ajuste dos Parafusos kgm: InstalaçãoTorque de Ajuste dos Parafusos kgm: Após 24h
AT 50 SEPTEM68018007,311,242046-10,522
AT 70 SEPTEM1880180016,4823,552565-1,50,82,52,5
AT 90 SEPTEM3400120032,8843,363085-2166
AT 105 SEPTEM6250120048,0864,8535100-2166
AT 140/100 SEPTEM13600120068,36109,4240100-3277
AT 140/140 SEPTEM13600120095,66135,5240140-3277
AT 200/90 SEPTEM40300900141,28241,270100-431515
AT 200/140 SEPTEM40300900167,86292,0480140-431515
AT 200/200 SEPTEM40300900261,38398,74130200-431515
AT 300/150 SEPTEM124020600331,89581100150-432222
AT 300/200 SEPTEM124020600418,51696,40100200-432222
AT 300/250 SEPTEM124020600599,45912,6140250-432222
AT 300/300 SEPTEM124020600685,75912,6140300-432222

Modelo e Dimensões mmD1D2SL1L2D5D6
AT 50 SEPTEM138665015050165120
AT 70 SEPTEM190936520570220150
AT 90 SEPTEM2501109025080300180
AT 105 SEPTEM27014090290100335202
AT 140/100 SEPTEM31214890320100405265
AT 140/140 SEPTEM312188120380130405265
AT 200/90 SEPTEM475150120380100550396
AT 200/140 SEPTEM475188185445130550396
AT 200/200 SEPTEM475276185545180550396
AT 300/150 SEPTEM
